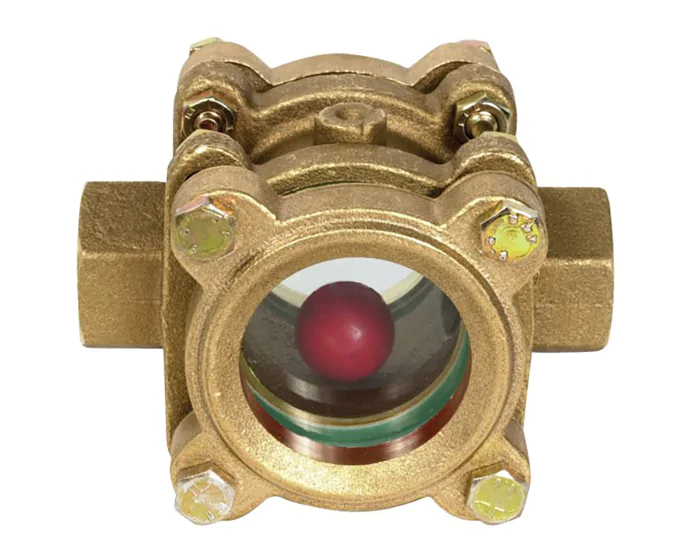

This controller is particularly suitable for low pressure and low temperature media. Body in cast brass CB 754 S, tempered glass, PS: 16 bar, PS: 80°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 103.0 |
| Gasket | Fibre x 2 |
| Body material | Brass CW617N |
| PS (bar) | 16 |
| Connections | BSP FF |
| TS max (°C) | 80 |
| TS min (°C) | 5 |
| Sight glass type | With ball |
| Direction | Unidirectional |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N DN15 - 1/2'' | 221504 | S1013431 |
€106.90
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' | 221505 | S1013432 |
€127.70
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' | 221506 | S1013433 |
€135.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 | 221507 | S1013434 |
€177.99
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 | 221508 | S1013435 |
€190.13
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' | 221509 | S1013436 |
€329.69
(excl. btw)
|
add to cart |
